5.5.1 Display Distance Between Two Atoms - the quick way

• Click on the Display tab
• Click on the Distance between two atoms button shown below.
• Click on the atoms you wish to measure.
• Distance will be displayed in the graphical display. You can turn this on and off in the ICM Workspace panel under the heading 3D labels.

5.5.2 Display Planar Angle

• Select the display tab.
• Select three atoms.

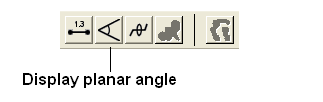

• Select the button shown below.

NOTE: This option is also available in the Tools/Analysis menu.

5.5.3 Display Dihedral Angle

• Select the display tab.
• Select four atoms.
• Select the button shown below.

NOTE: This option is also available in the Tools/Analysi s menu.

5.5.4 Delete Label

To delete distance or angle labels

• Select the display tab.

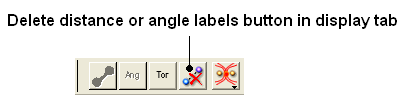

• Select the delete distance or angle label button shown below.
